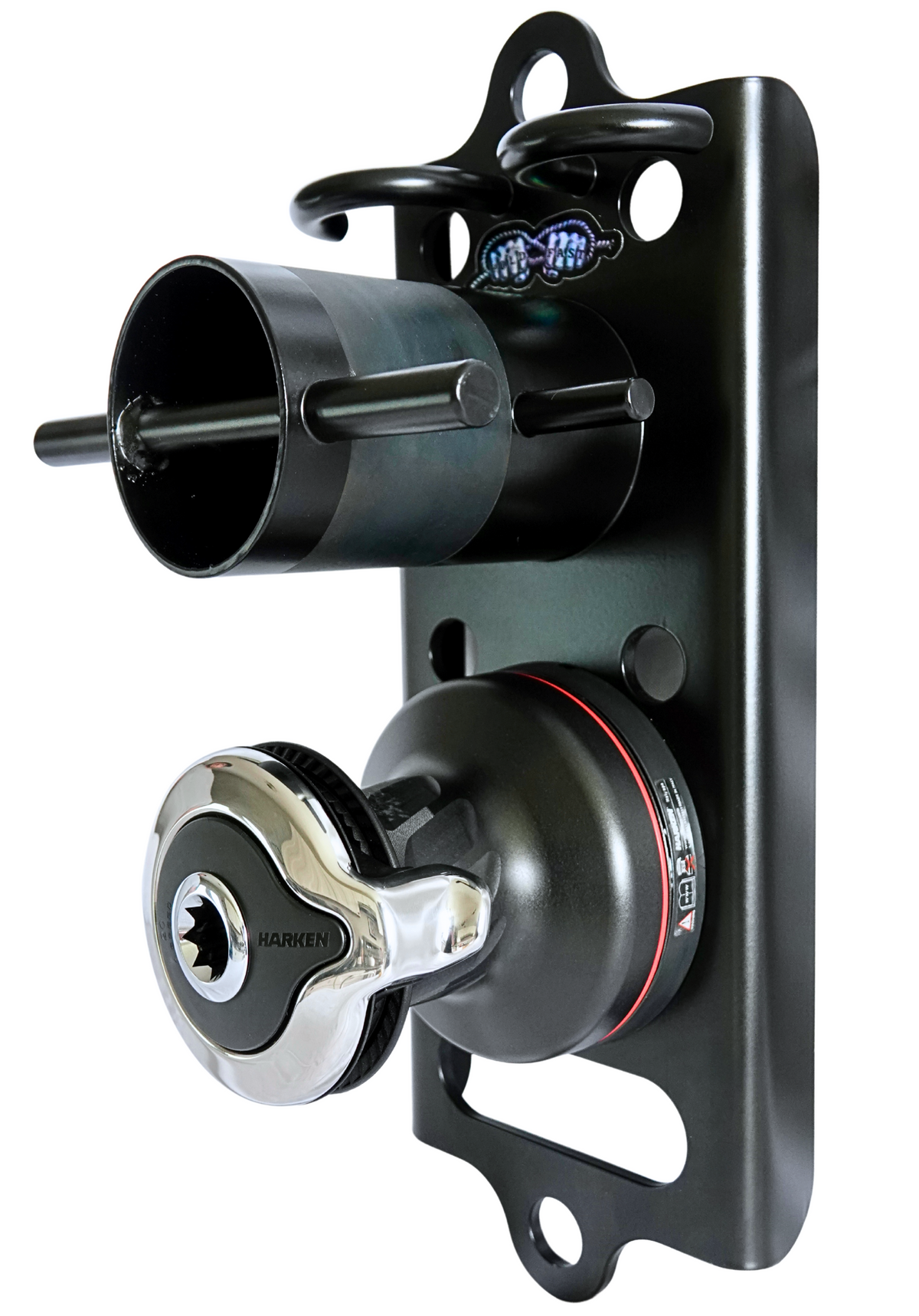

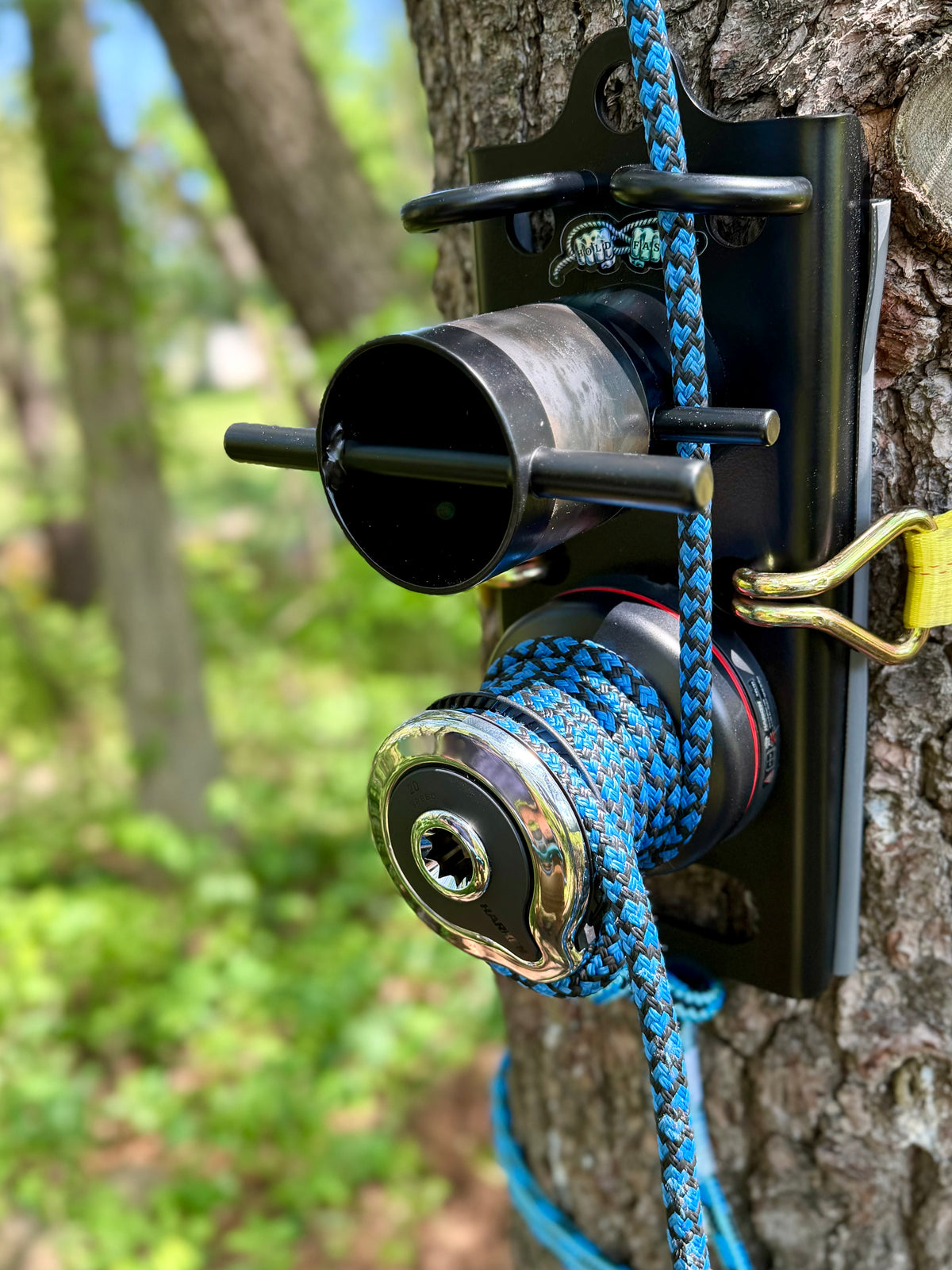

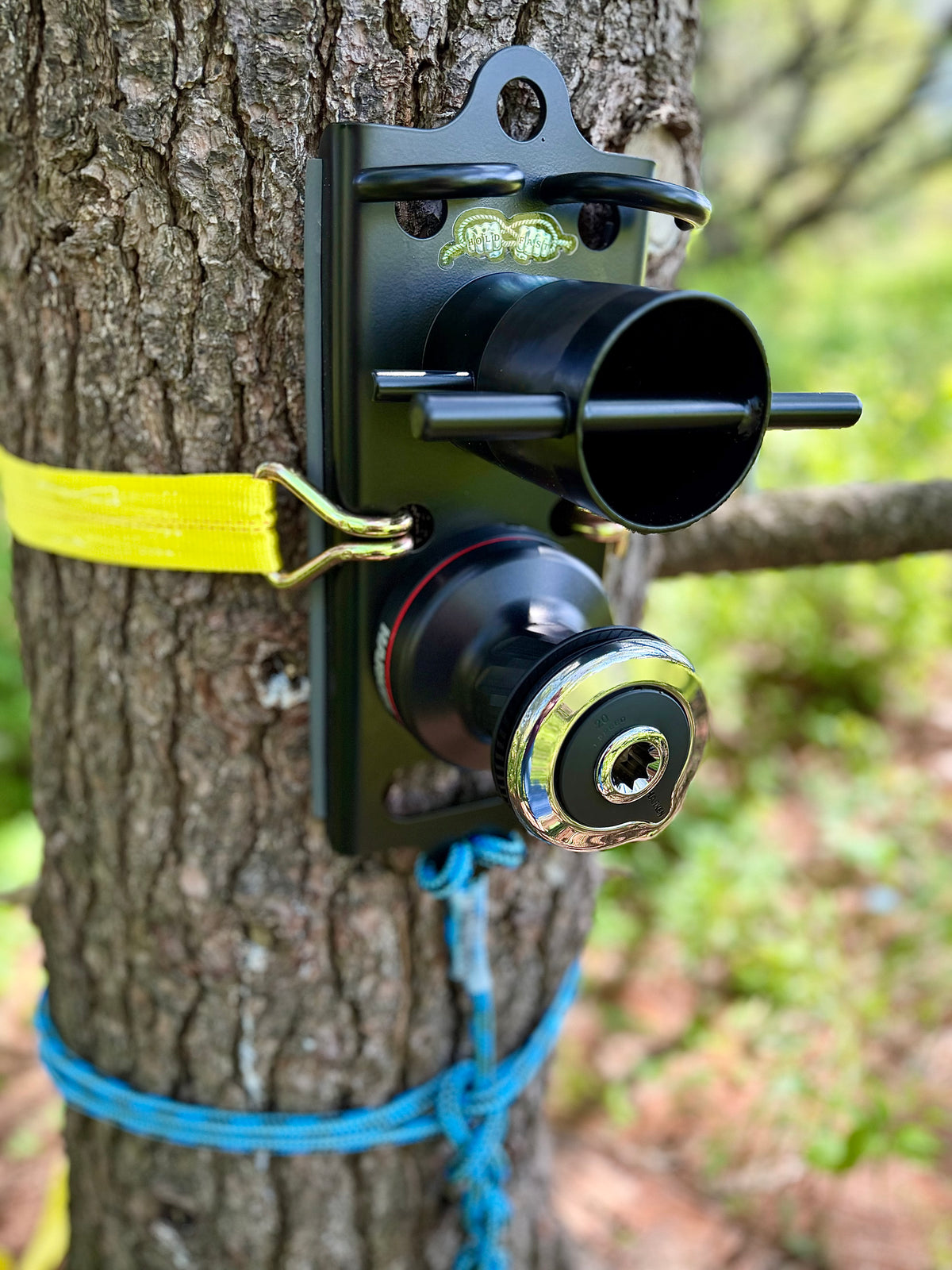

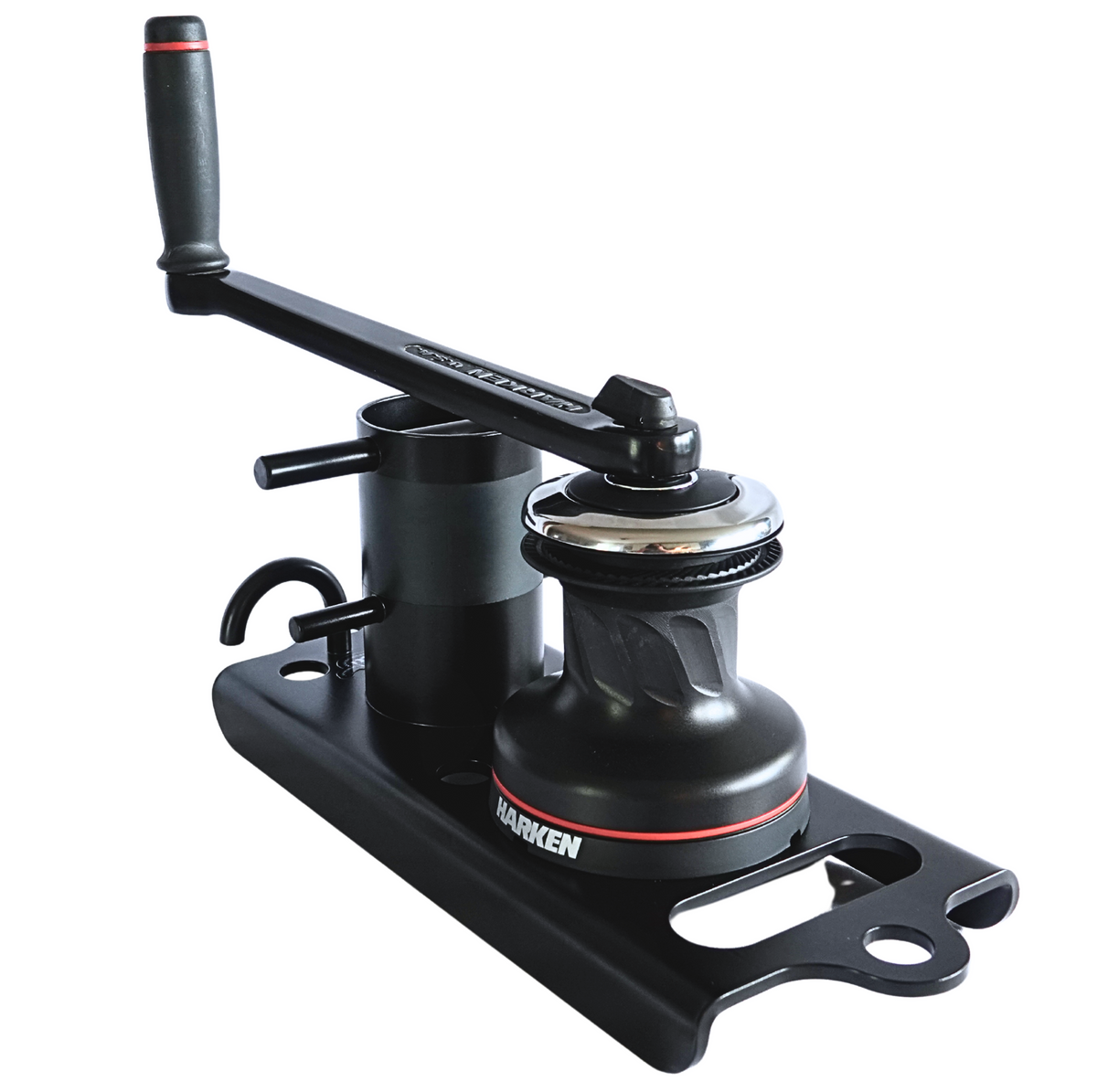

HOLD FAST OG RIGGING SYSTEM

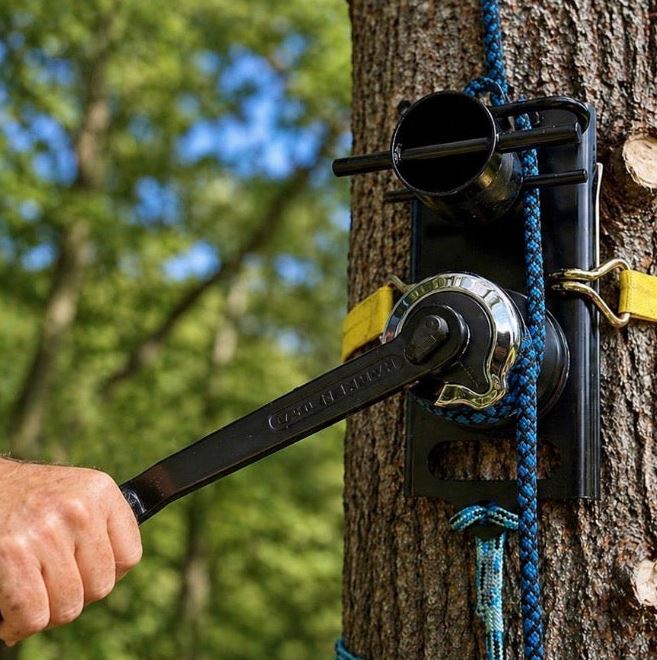

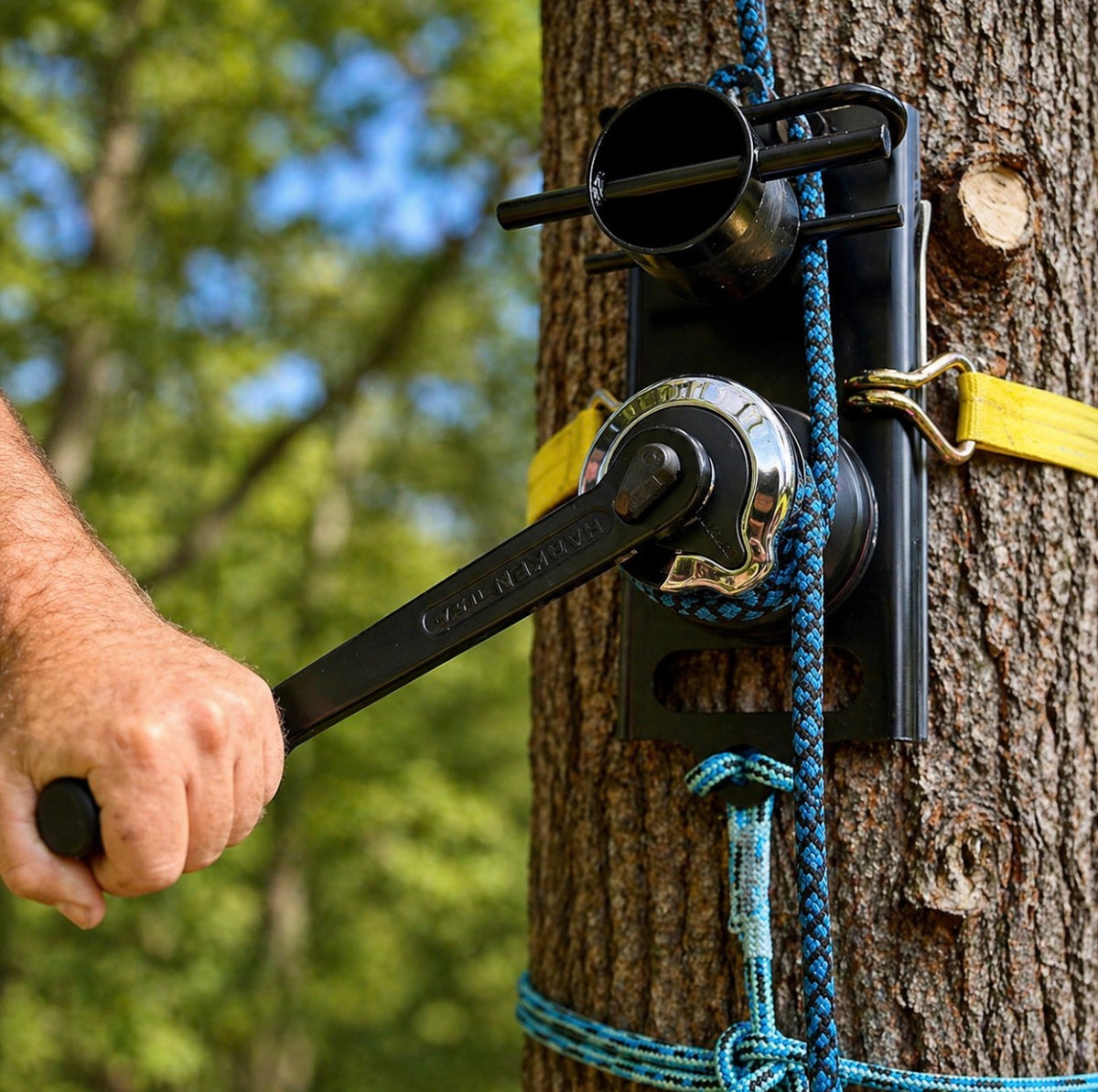

Designed to be light and portable, the original HOLD FAST Rigging System combines the mechanical advantage of a self-tailing Harken winch with the strength and stability of a fixed bollard for simultaneous lifting and lowering capabilities in one compact package.

Kit includes:

• 1) Hold Fast OG Rope Management System
• 1) Dead eye sling (Color Varies)
• 1) Ratcheting strap
• 1) Winch Handle

Don't forget the Harken Winch Driver Bit for use with a Right Angle Drill for easier lifting!

Hold Fast Rigging Quick Start Guide

Hold Fast Rigging Safety Manual

Harken 20 Winch Manual

Hold Fast Rigging System Product Overview

Details

• Developed by working arborists to address everyday complex rigging challenges

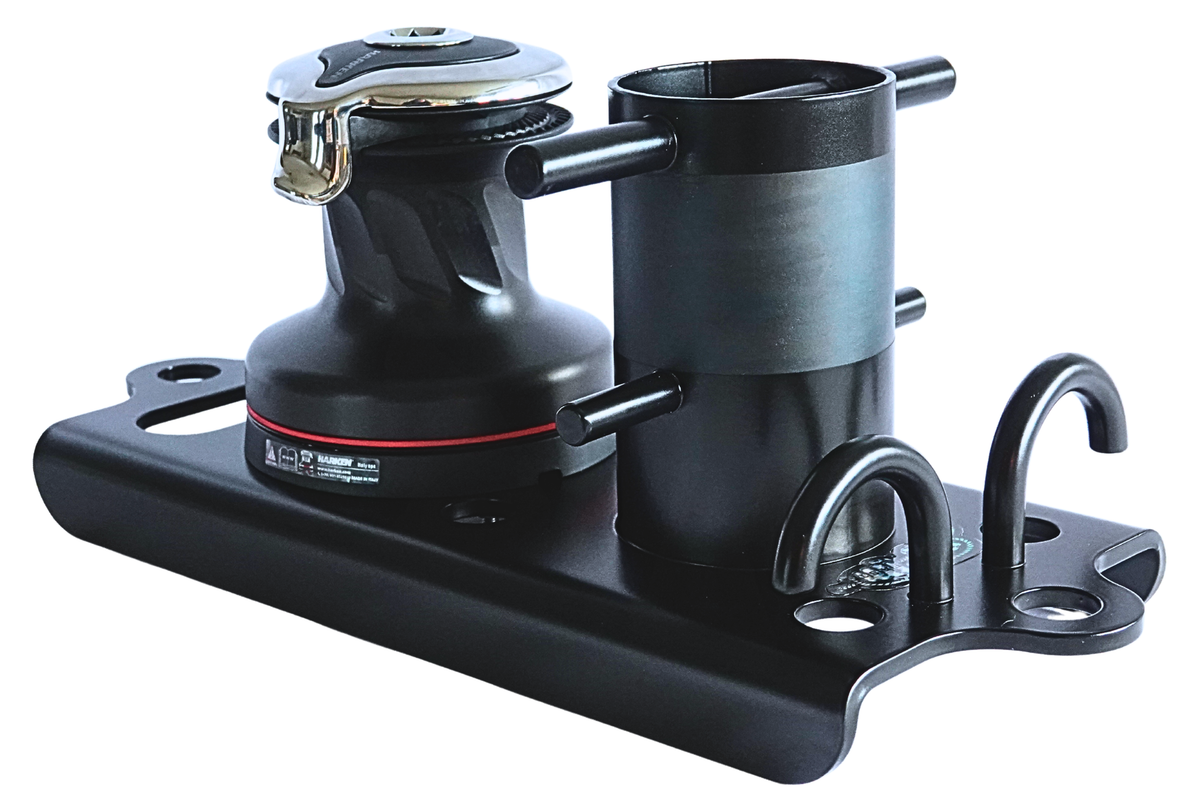

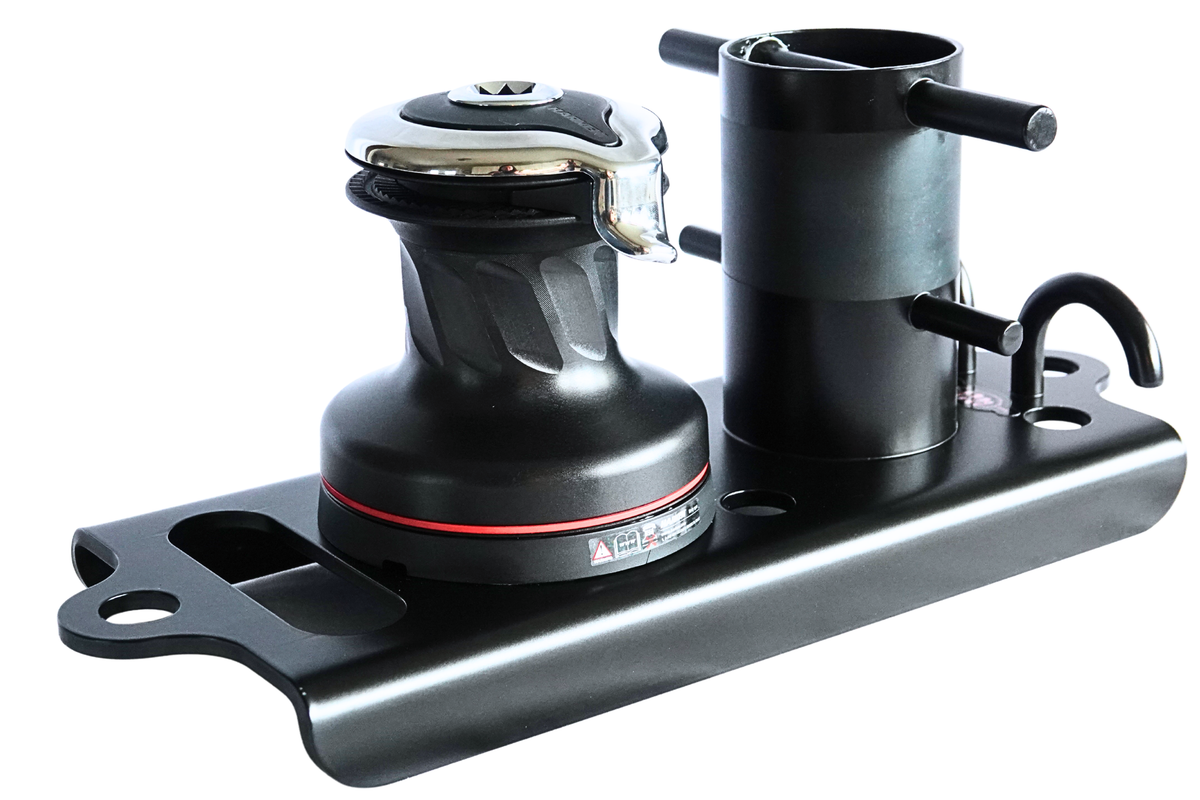

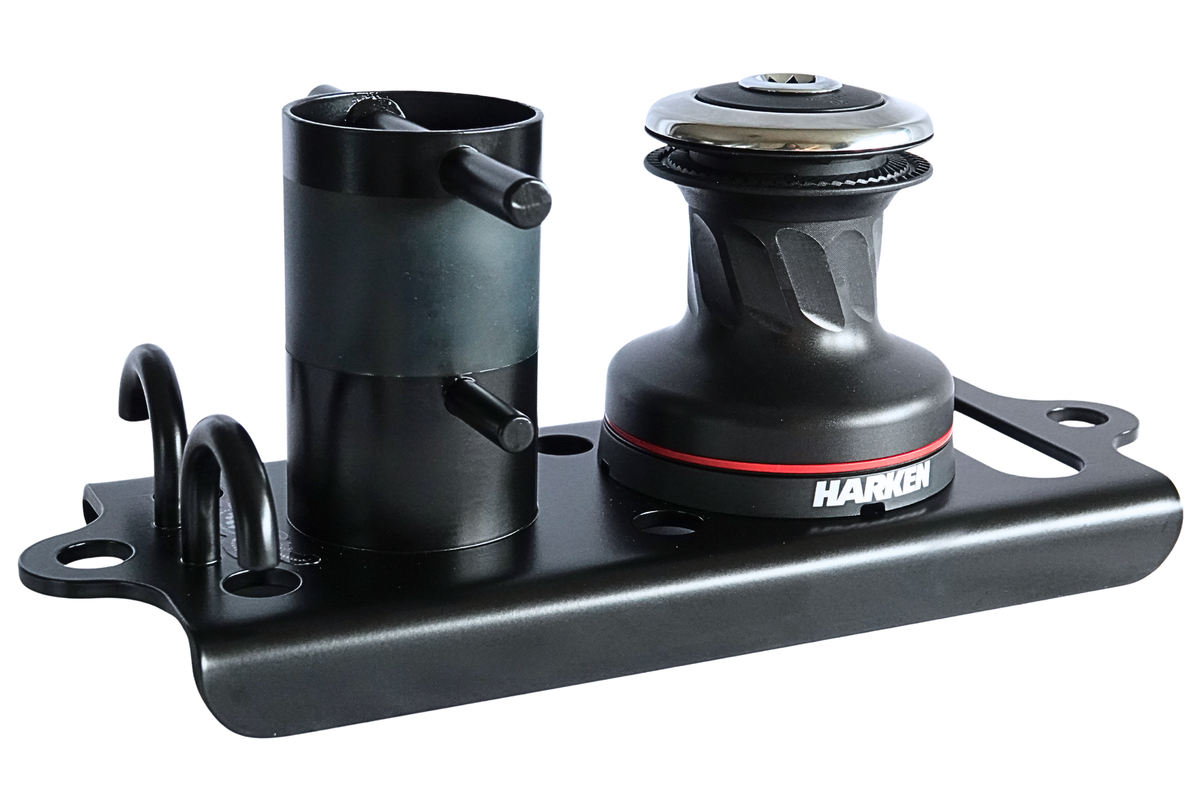

• Integrates a Harken Radial 20 self-tailing winch with a fixed bollard mounted on a compact steel rigging plate

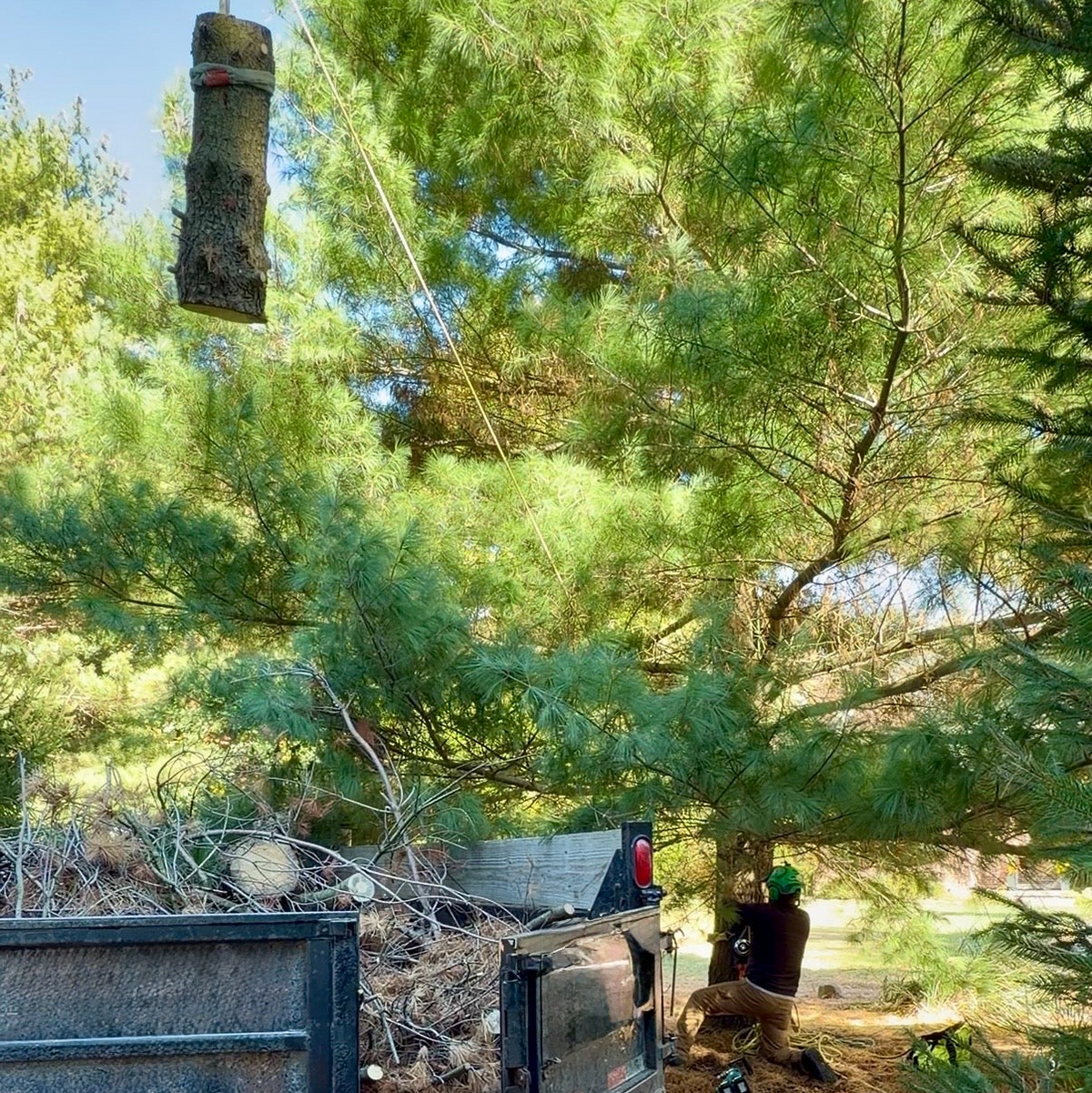

• Allows simultaneous lifting and lowering operations from one streamlined system
• Accepts either one rope or two separate ropes simultaneously for increased rigging versatility
• Strategically placed fairleads help properly align running lines while supporting additional rigging accessories
• Compact and lightweight design allows for fast deployment and efficient setup in the field
• Powder-coated finish for durability and corrosion resistance
• Special bollard coating helps ropes run smoothly and cleanly during lowering operations

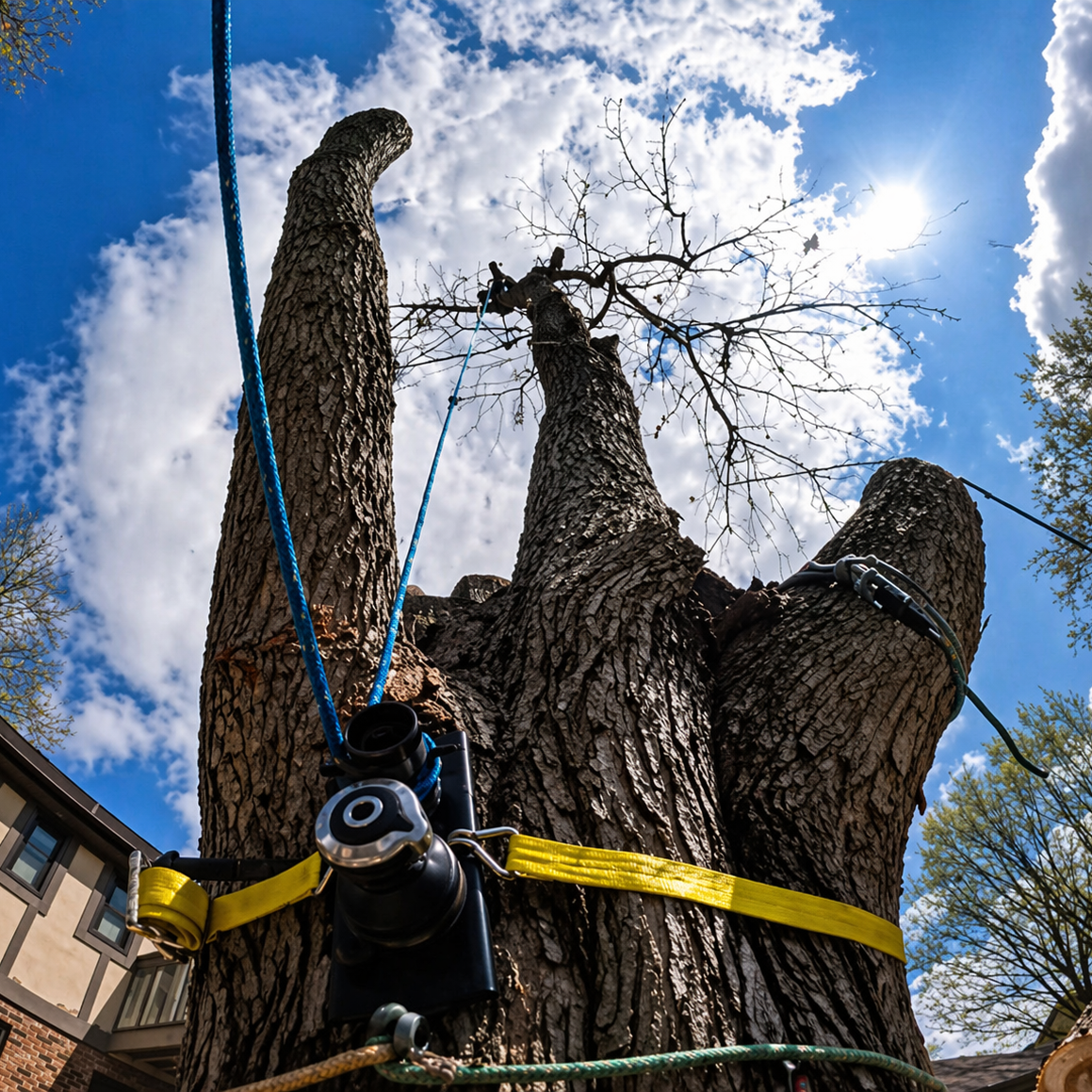

• Mounts vertically or horizontally, depending on the rigging application

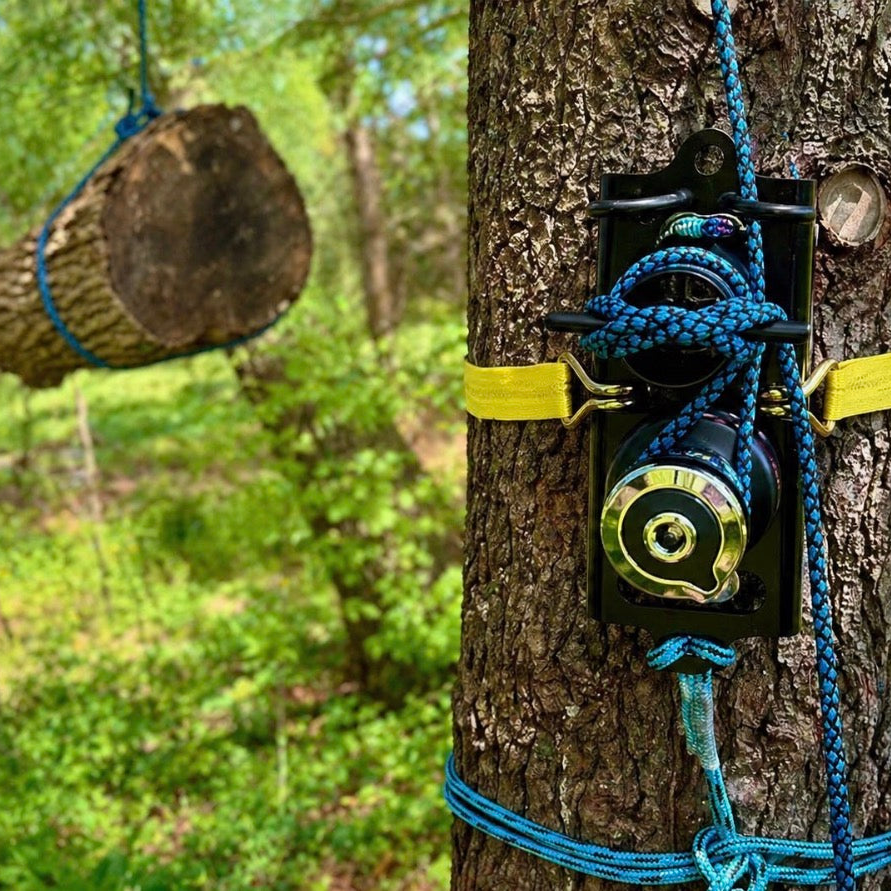

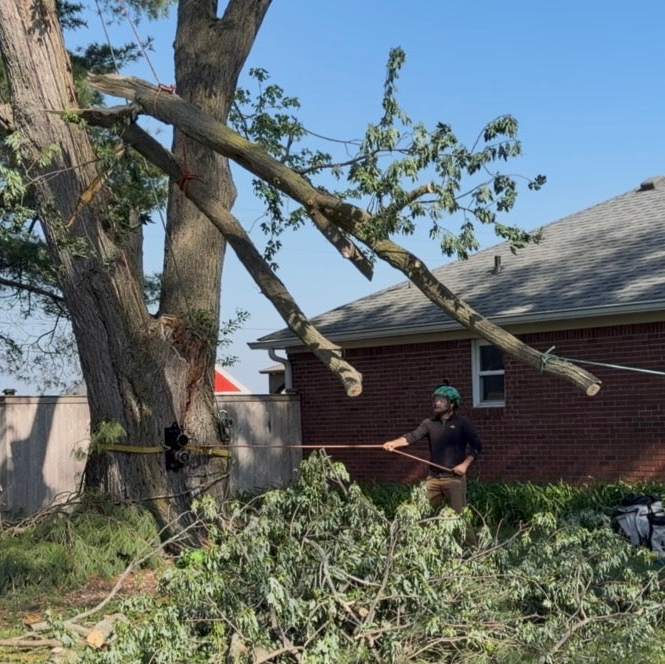

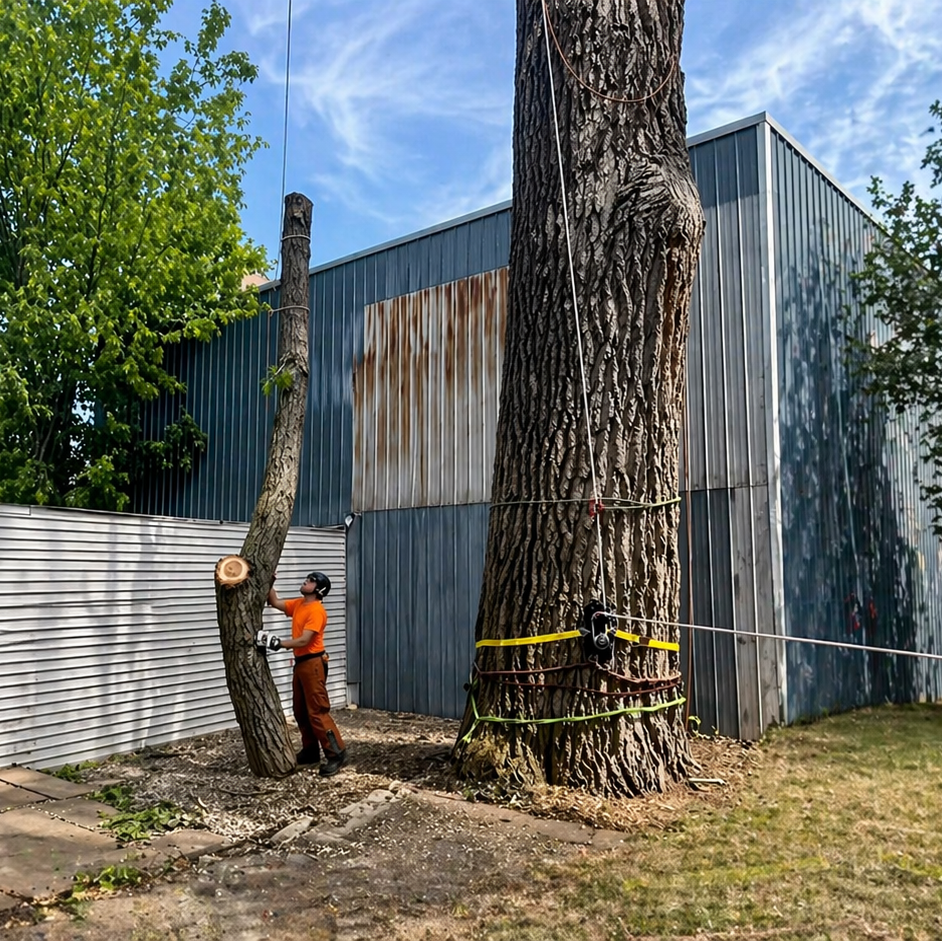

• Designed for precision rigging in tight drop zones and when working over roofs, fences, and obstacles

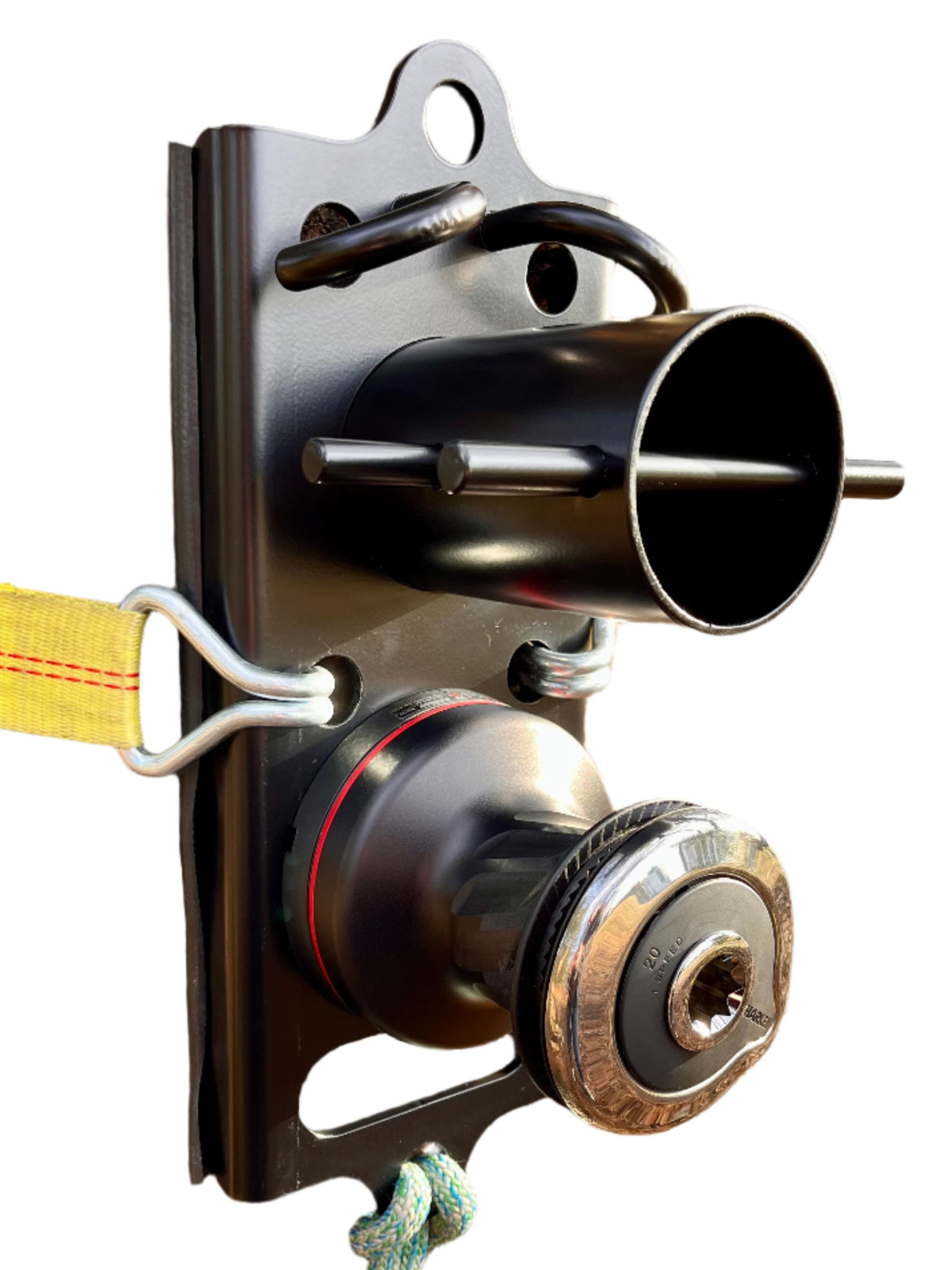

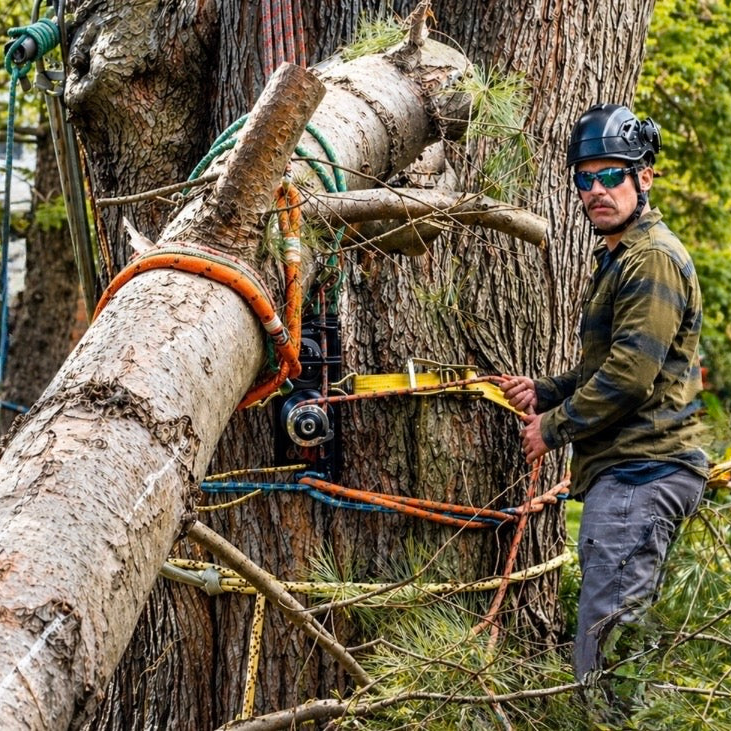

• Ratchet straps and dead-eye sling included for secure basal mounting
• Break tested and engineered with a 5:1+ safety factor
• Built and field-tested in the USA by professional arborists
• Scannable QR support resources available for setup instructions, manuals, and educational content
• Intended for use in accordance with ANSI Z133 safety practices

Specs

• Harken Radial 20 Self-Tailing Winch
• Approximate Mechanical Advantage: 19.2:1
• Winch Rope Capacity: 1/2”
• Fixed Bollard Rope Capacity: 9/16”
• Bollard Working Load Limit: 2,000 lbs
• Approximate System Weight: 18 lbs
• Plate Construction: 1/4” Steel
• Length: 18”
• Width: 6 3/4”
• Plate Height: 1.5”
• Bollard Height: 6”
• Total Height: 7.5”
• Mounting Configuration: Vertical or Horizontal
• Includes: Hold Fast OG Rigging System, Harken Radial 20 ST Winch, Fixed Bollard, Ratchet Straps, Dead-Eye Sling, Winch Handle
• Country of Manufacture: USA
• MPN:HF100
